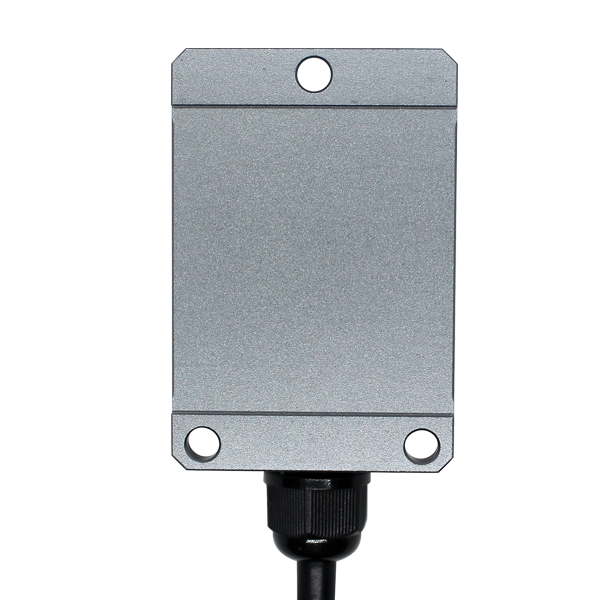

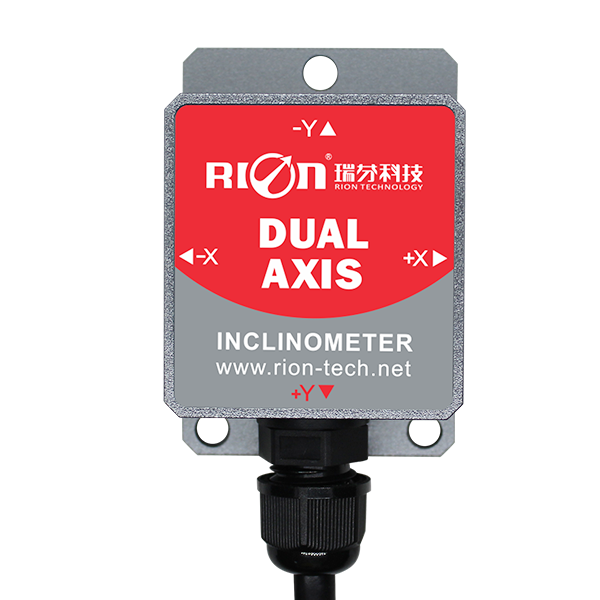

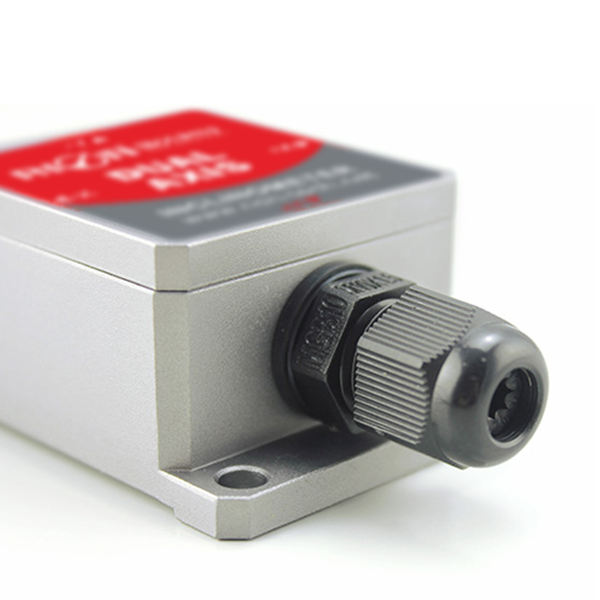

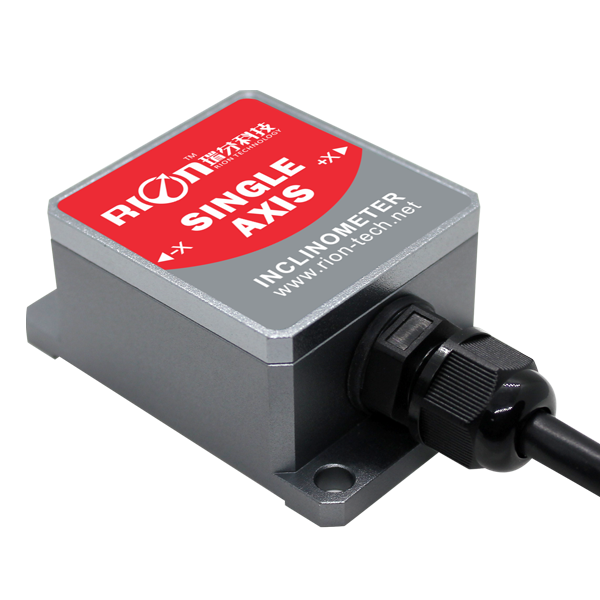

Single and biaxial inclination measurement
Any range within 360 ° is optional
Accuracy: 0.1 °
Wide voltage input 9～36V
Output mode: 4~20mA
Wide temperature operation -40～+ 85 ℃
IP67 protection level
High anti-vibration performance> 3500g
Resolution 0.02 °
Small size 55 × 37 × 24mm (customizable)
Product Description
Scope of application
Parameter
Dimensions
DownloadLCA318T & LCA328T series tilt angle is a small-volume MEMS uniaxial tilt sensor developed by RION. The output current is internally quadratic linearity corrected. It is a linearity current output tilt angle sensor. It is mainly aimed at applications where volume and cost are highly restrictive. Due to the built-in inclination unit of the latest micro-electromechanical production process, the product is small, long-distance transmission can reach more than 2000 meters, and it has strong resistance to external electromagnetic interference and can be adapted to long-term work in harsh industrial environments.This product adopts the non-contact measurement, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes. It is an ideal choice for industrial automation control and platform measurement attitude!
| LCA318T/328T | CONDITION | PARAMETER | UNIT | |||
| Measure range | | ±30 | ±60 | ±90 | 0~360 | ° |
| Measure axis | | X Y | X Y | X Y | X Y | Axis |
| Zero output | 0° output | 12 | 12 | 12 | 12 | mA |
| Resolution | | 0.02 | 0.03 | 0.05 | 0.08 | ° |
| Measure accuracy | @25℃ | 0.1 | 0.1 | 0.15 | 0.2 | ° |
| Long term.stability | | <0.5 | <0.5 | <0.5 | <0.5 | |
| Zero Temp.coefficient | -40～85℃ | ±0.02 | ±0.02 | ±0.02 | ±0.02 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤150 | ≤150 | ≤150 | ≤150 | ppm/℃ |
| Power-on start time | | 0.5 | 0.5 | 0.5 | 0.5 | S |
| Response time | | 0.02 | 0.02 | 0.02 | 0.02 | s |
| | 1～20 | 1～20 | 1～20 | 1～20 | Hz | |
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥45000 hours/times | |||||
| Insulation Resistance | ≥100 MΩ | |||||
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms、10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | standard configuration: 1 meter wearproof、grease proofing、wide temperature、Shielded cables 4*0.3mm2 | |||||
| Weight | ≤135g (including 1 meter cable) | |||||
| PARAMETERS | CONDITION | MIN | TYPICAL | MAX | UNIT |
|---|---|---|---|---|---|
| Power supply voltage | Standard | 9 | 12、24 | 36 | V |
| Working current | | | 12 | | mA |
| Output internal resistance | resistiveness | 400 | | 1000 | kΩ |
| Current sampling resistor | Advice | | 250 | | R |
| Operating temp. | | -40 | | +85 | ℃ |
| Store temp. | | -40 | | +85 | ℃ |
L58×W37×H24mm
L48×W28.6×H4mm
3 M4 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
