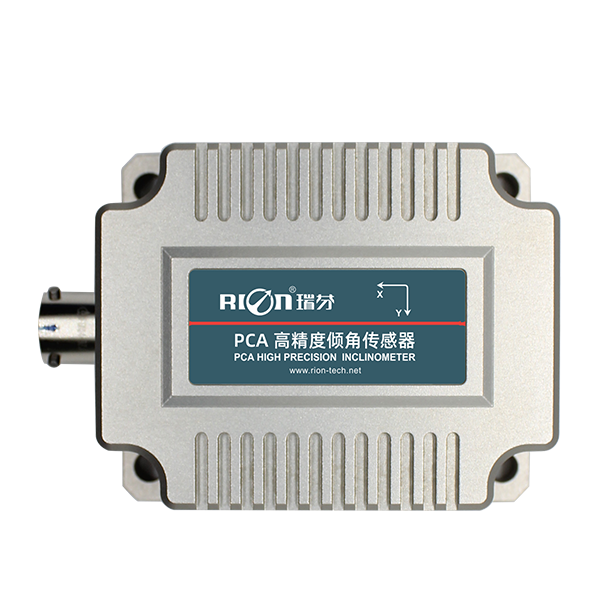

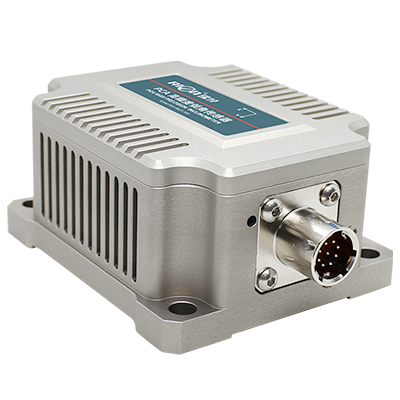

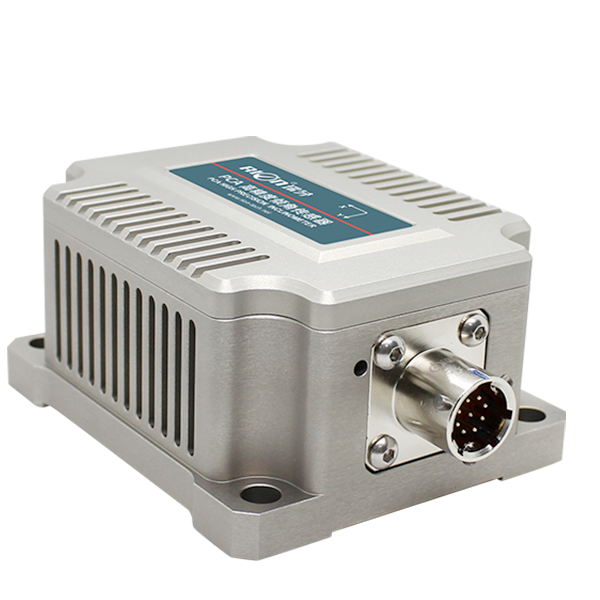

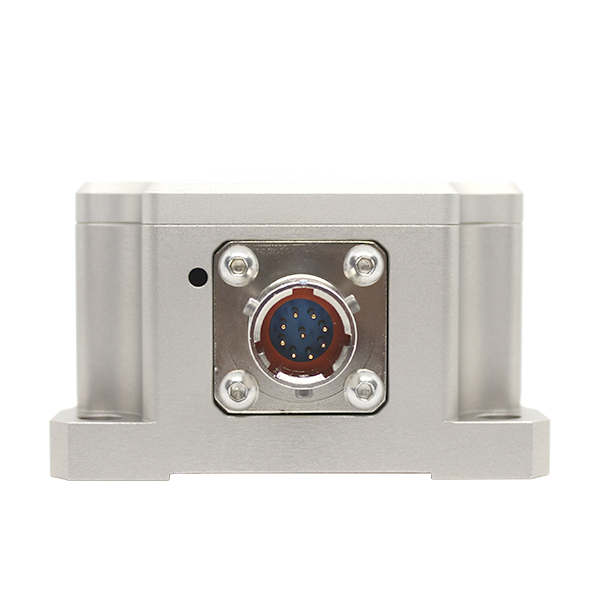

Biaxial tilt angle measurement
Range ±1～±60° optional
Horizontal/vertical optional
Resolution 0.0005°
DC 9～36V wide voltage input
Wide temperature operation -40～+85℃
Output mode RS485, RS422,RS232 optional
Product Description
Scope of application
Parameter
Dimensions
DownloadPCA826T is a high-performance product developed by Rion Technology specially for the high-precision inclination measurement. Before leaving the factory, all products would have full temperature range calibration and compensation, and a two-week long-term stability test ensures compatibility under different working conditions and maintains the best performance indicators during the long-term test cycle. The product integrates the FFT function, which can measure the vibration of 0.5~20Hz, and estimate the vibration frequency of the object to obtain the maximum speed and maximum displacement of the object vibration. Integrate two kinds of output protocols including the industrial standard MODBUS protocol, the supporting computer analysis software can display and record the measurement data in real time. Output interface RS485, RS422, RS232 optional. The non-contact installation makes PCA826T easy to install or integrate. Strong resistance to external electromagnetic interference, strong anti-shock and vibration ability, widely used in satellite communication system processing vehicles, special vehicles, radar antenna vehicles, etc.
| PCA826T | CONDITION | PARAMETERS | UNIT | |||
| Measure range |
| ±5 | ±10 | ±30 | ±60 | ° |
| Measure axis |
| XY | XY | XY | XY |
|
| Resolution |
| 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° |
| Measure accuracy | @25℃ | 0.001 | 0.002 | 0.003 | 0.005 | ° |
| Zero temp coefficient | -40～85℃ | 0.0002 | 0.0002 | 0.0002 | 0.0002 | °/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time |
| <0.4 | <0.4 | <0.4 | <0.4 | S |
| Response frequency |
| 20 | 20 | 20 | 20 | Hz |
| Output rate | 5Hz、10Hz、25Hz、35Hz、50Hz、100Hz. Can be set | |||||
| Ouput signal | RS485/RS422/RS232 optional | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hour/time | |||||
| Insulation Resistance | ≥100 MΩ | |||||
| Shockproof | 100g@11ms、3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms、10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector | |||||
| Weight | ≤400g (Excluding cable) | |||||

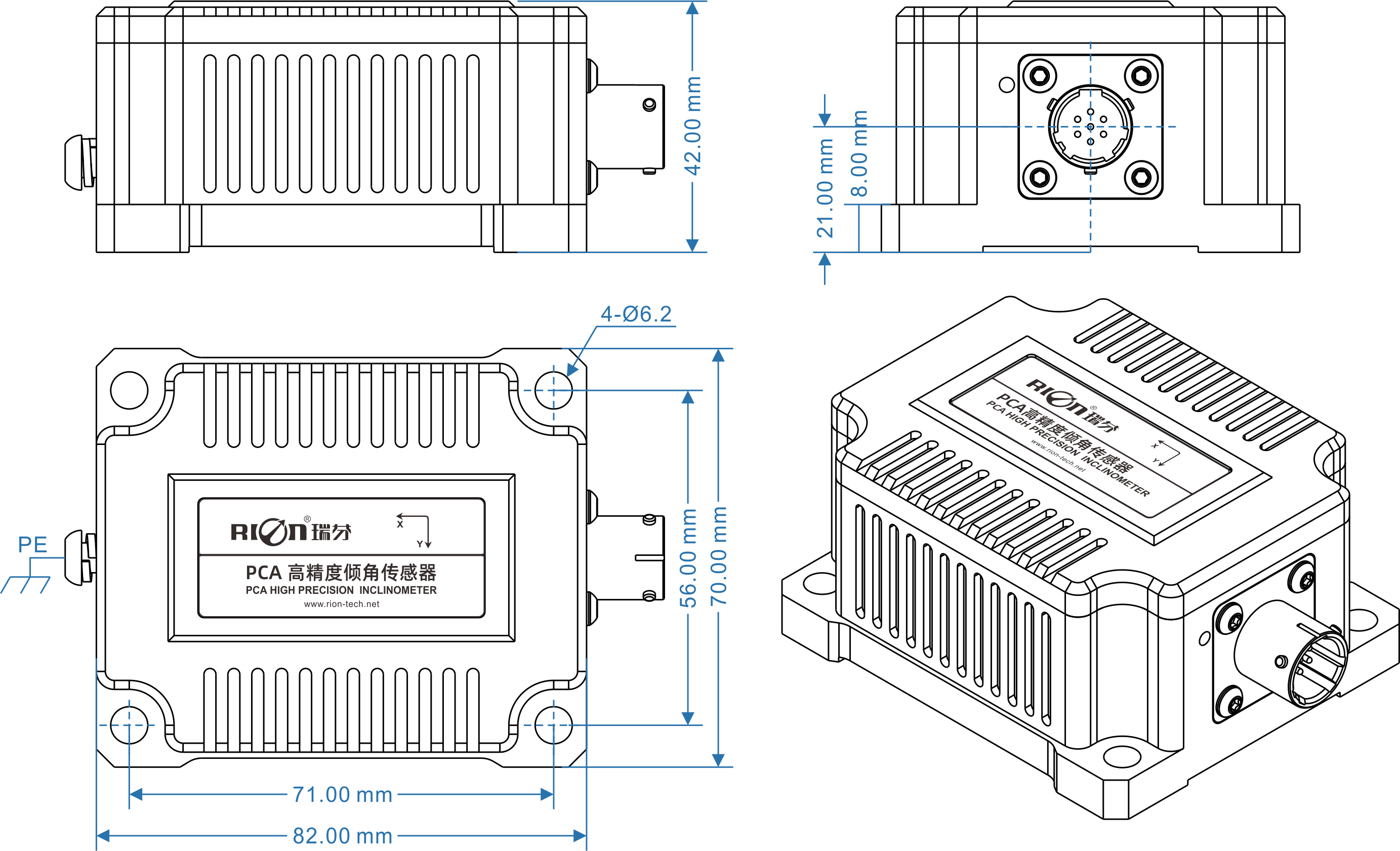

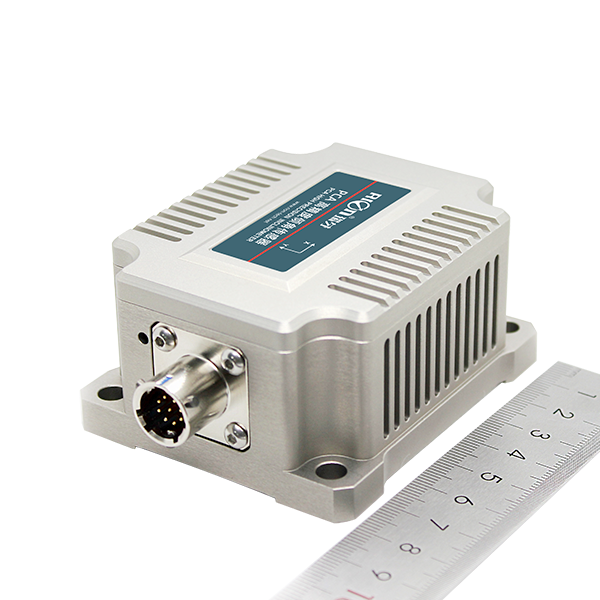

L82×W70×H42mm
L71×W56×H8mm
4 M6 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
