Measured accuracy: <0.005°
Angular resolution: 0.001°
Filter frequency optional
Measure range: ±30°
With data storage function
Alarm angle can be set
3 measurement modes are available (angle, degree, minute, second, mm/m)
Product Description
Scope of application
Parameter
Dimensions
Download
| PARAMETER | DMI815 | DMI825 | UNIT | ||
| Meausre axis | Single axis | Single axis | Dual axis | Dual axis | axis |
| Angle measurement range | ±15° | ±30° | ±15° | ±30° | ° |
| Angle measurement accuracy | <0.005 | <0.01 | <0.005 | <0.01 | ° (full scale) |
| Angle measurement resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° |
| mm/m measuring range | 267 | 577 | 267 | 577 | mm/m |
| mm/m measurement accuracy | 0.1 | 0.2 | 0.1 | 0.2 | mm/m |
| mm/m measurement resolution | 0.02 | 0.02 | 0.02 | 0.02 | mm/m |
| Repeatability | 0.003 | 0.003 | 0.003 | 0.003 | ° |
| 3 measurement modes | Angle, degrees, minutes, seconds, mm/m | / | |||
| LCD | 64 true colors night vision display screen | / | |||
| LCD visible area size | L57.6*W43.2 | mm | |||
| Working temperature | -10℃～+70℃ | ℃ | |||
| Working humidity | 85 | %RH | |||
| power supply | 3.7VRechargeable Lithium Battery | V | |||
| Ideal charging time | 5 | Hour | |||
| Battery continuous working time | 11 | Hour | |||
| data output signal | USB1.1(Virtual Serial Device) | / | |||
| PC software | VCapplication | / | |||
| connector | Standard USB connector, rechargeable | / | |||
| Shock resistance | 10g@11ms、3 Axial Direction (Half Sinusoid) | g | |||
| Shock impact | 10grms、10～100Hz | g | |||
| Waterproof grade | IP54 | / | |||
| Material | Anodized aluminum alloy | / | |||
| Size | L117*W75*H27mm | mm | |||
| Weight | 300 | g | |||

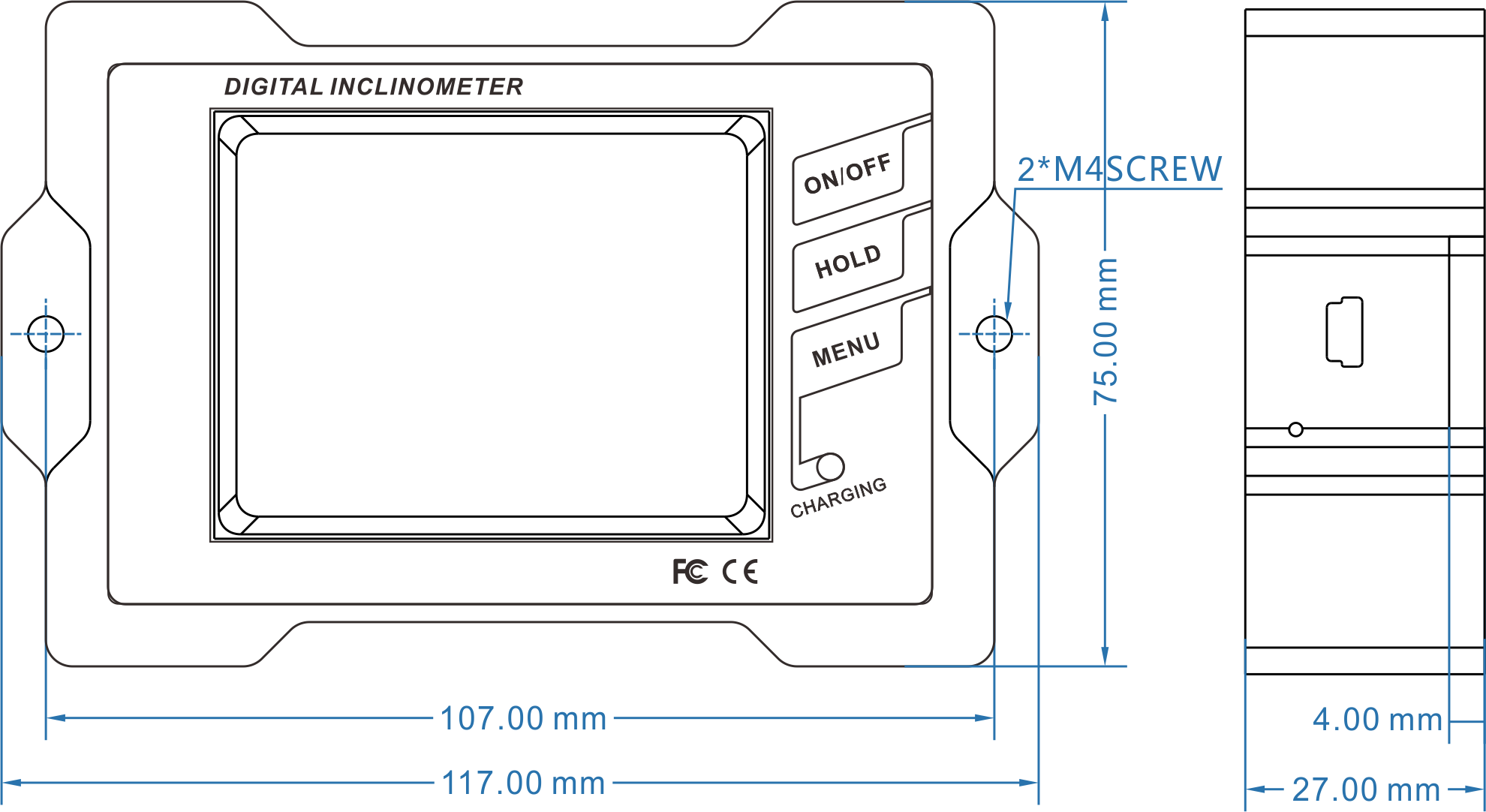

L117×W75×H27mm
L107×H4mm
2 M4 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
