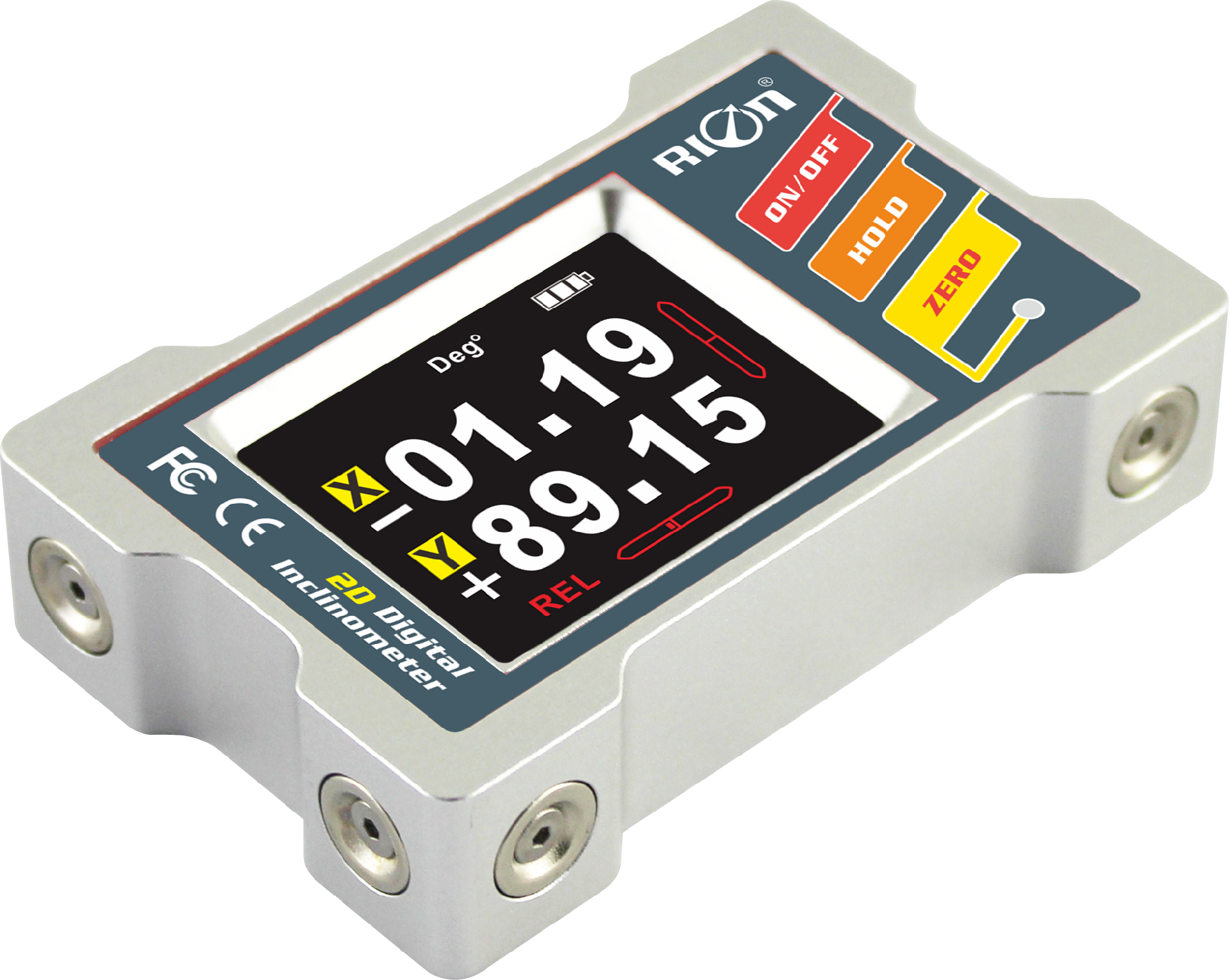

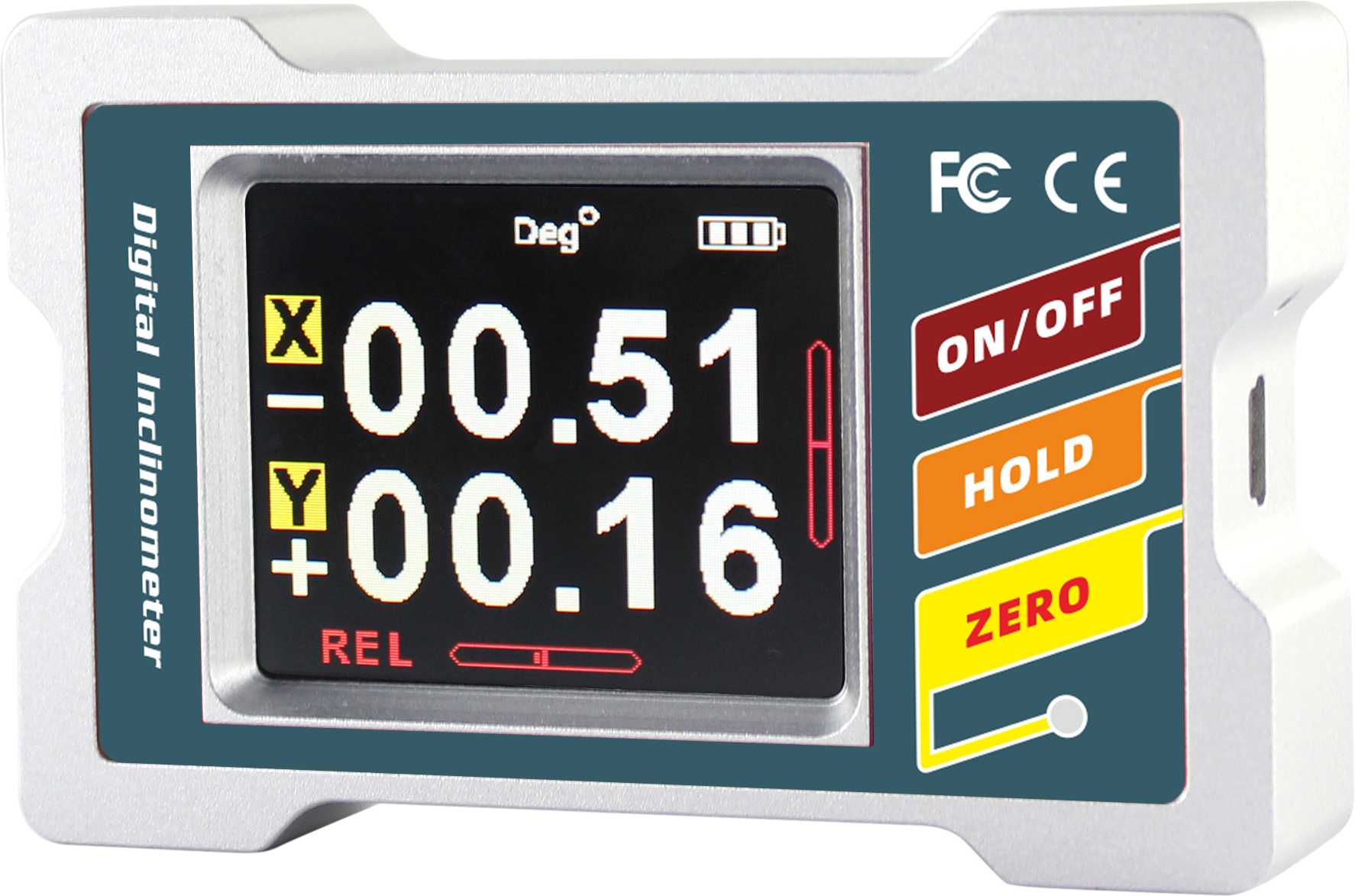

DIGITAL DISPLAY INCLINOMETER

Product Description

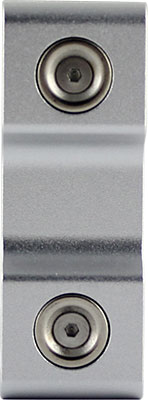

DMI410&DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement，resolution 0.01 °，accuracy <0.05 degree full-scale，fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use，This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Scope of application

Medical device angle leveling

Machine platform angle leveling

Lifting table angle leveling

SPECIFICATIONS

PARAMETERS	DMI410	DMI420
Measurement axis	Single axis	Dual axis
Angle measurement range	±180 °	±90 °
Angle measurement accuracy	0.05 °（full range）	0.05 °（full range）
Angle measure resolution	0.01°	0.01°
mm/m measure range	±999.9mm/m	±999.9mm/m
mm/m measurement accuracy	0.9mm/m(full range)	0.9mm/m(full range)
mm/m measurement resolution	0.1mm/m	0.1mm/m
LCD visible area size	L40*W32mm
Working temperature	-10℃～+70℃
Working humidity	85%RH
Power supply	3.7V Charging Lithium battery
Ideal charging time	3h
Battery continuous working time	8h（±0.5）

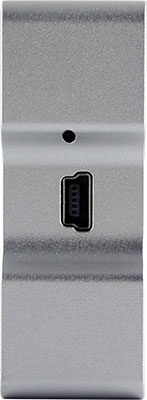

Data output signal	Standard5Pin USB connector
Anti-vibration	10g@11ms、3 Axial Direction (Half Sinusoid)
Impact resistance	10grms、10～100Hz
Waterproof level	IP54
Material	Metal aluminum
Size	L83W53H19.2mm
Weight	≤140g

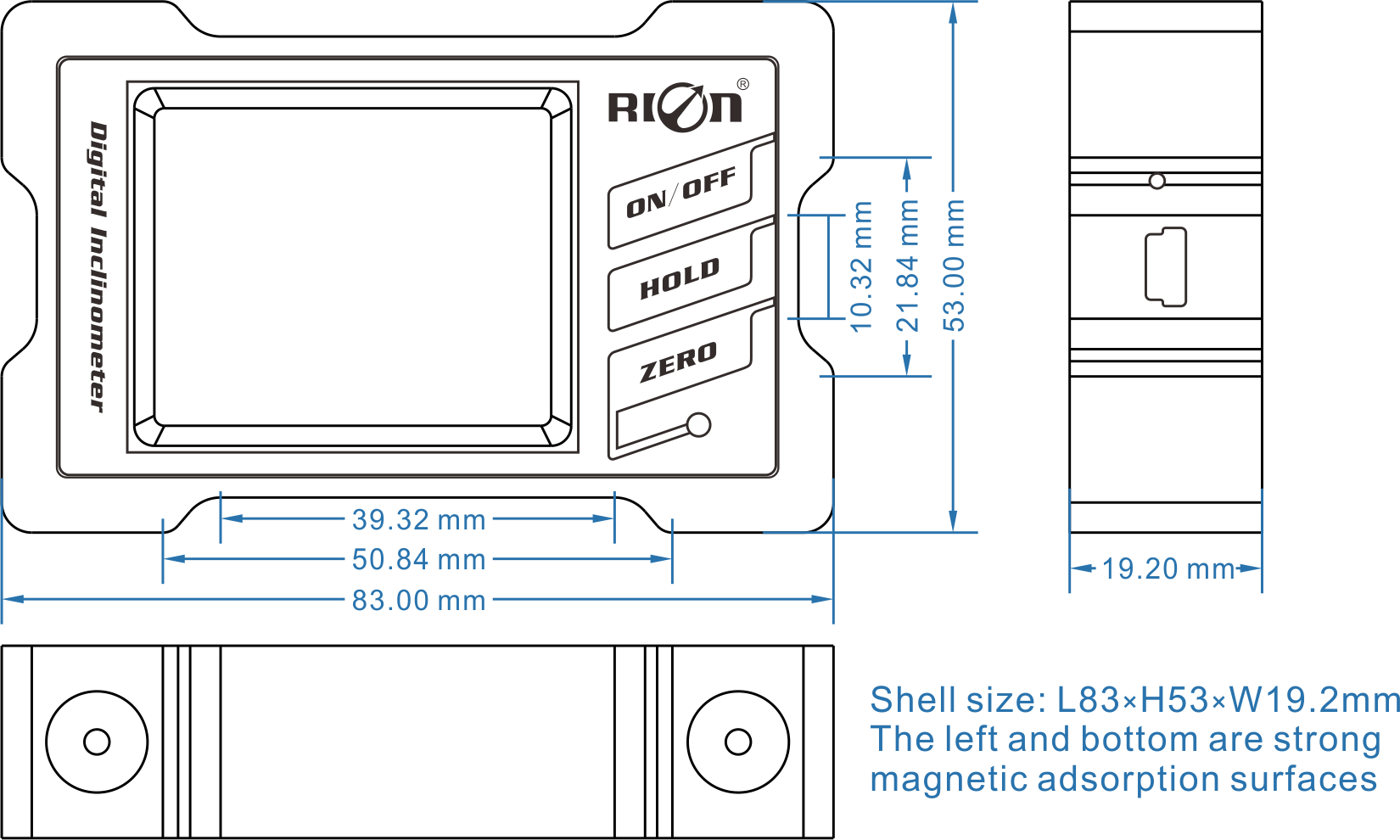

Dimensions

Size description

Shell size

L83×H53×W19.2mm

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.

Software Download

DMI SERIES PRODUCT USB DRIVER

File Location: Download Specifications /DMI4 SERIES/DMI410 DMI420
DIGITAL DISPLAY INCLINOMETER

Update Time: 2022-01-12 15:19

File Size: 5.2MB

File Format:

Download

Software Download

DMI420 DIGITAL INCLINOMETER SOFTWARE V1.0

File Location: Download Specifications /DMI4 SERIES/DMI410 DMI420
DIGITAL DISPLAY INCLINOMETER

Update Time: 2022-01-12 15:17

File Size: 0.1MB

File Format:

Download

Software Download

DMI410 DIGITAL INCLINOMETER SOFTWARE V1.0

File Location: Download Specifications /DMI4 SERIES/DMI410 DMI420
DIGITAL DISPLAY INCLINOMETER

Update Time: 2022-01-12 15:17

File Size: 0.1MB

File Format:

Download

Download Specifications

DMI410 DMI420 DIGITAL DISPLAY INCLINOMETER

File Location: Download Specifications /DMI4 SERIES/DMI410 DMI420
DIGITAL DISPLAY INCLINOMETER

Update Time: 2021-12-28 11:40

File Size: 1.9MB

File Format:

Download
