Product Description

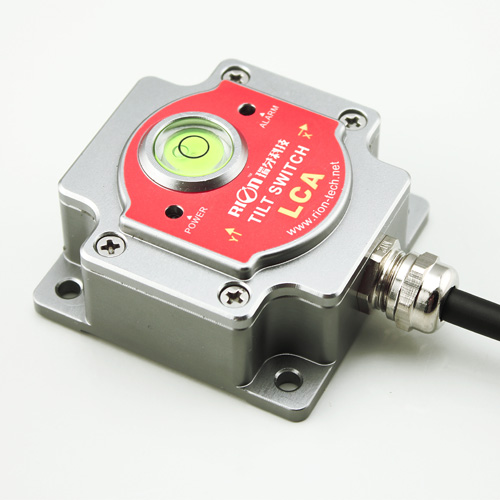

LCA331/LCA332 is a low cost tilt switch developed by RION for application like level safety alarming and platform level monitor and alarm. Alarm threshold value is pre-setable. when the inclination exceed set alarm value, it will output switch output signal(output voltage=input voltage), or output replay output signal to drive the solenoid valve hydraulic system or drive buzzer or alerming light for the safety of platform. Its main function is to monitor and alarm the(dual axis or single axis) inclination of platform automatically. LCA331/LCA332 series tilt switch has high accuracy bubble for zero reference, LED alarming function.

Scope of application

Engineering vehicle leveling

Bridge and Dam Monitoring

Minecart/Railcar Monitoring

TECHNICAL DATA

LCA331&LCA332	CONDITIONS	PARAMETER	UNIT
Measure range		±15	°
Measure axis		X Y	Axis
Resolution		0.05	°
Measure accuracy		0.1	°
Long-term stability		0.05	°
Zero temp. coeffiecient	-40～85℃	±0.01	°/℃
Temp. Sensitivity coefficient	-40～85℃	≤100	ppm/℃
Power on time	0.1		S
Response time	0.2		s
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥50000hours/times
Insulation Resistance	≥100MΩ
Impact resistance	100g@11ms、3 axial direction (half sinusoid)
Anti-shock	10grms、10～1000Hz
Protection grade	Direct lead IP67; Aviation plug IP65
Cables	1m, durable, grease proof, wide temperature, shield cable, 4*0.4 mm2
Weight	140g(without cable)

ELECTRONIC CHARACTERISTICS

PARAMETERS	CONDITIONS	MIN	STANDARD	MAX	UNIT
Power supply	Standard	9	12、24	36	V
Alarm output current				1000	mA
Working current	No-load		40		mA
Working temperature		-40		+85	℃
Store temperature		-40		+85	℃

Dimensions

Size Description

Shell size

L76×W60×H36mm
Installation size

L48×W48×H6mm
ounting screws

4 M4 screws

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.

SWITCH OUTPUT TYPE TILT SWITCH
