Single/dual axis
Accuracy: 0.1°
RS232 set alarm angle
Switch/replay output
Resolution: 0.01°
Positive/negative output
Product Description
Scope of application
Parameter

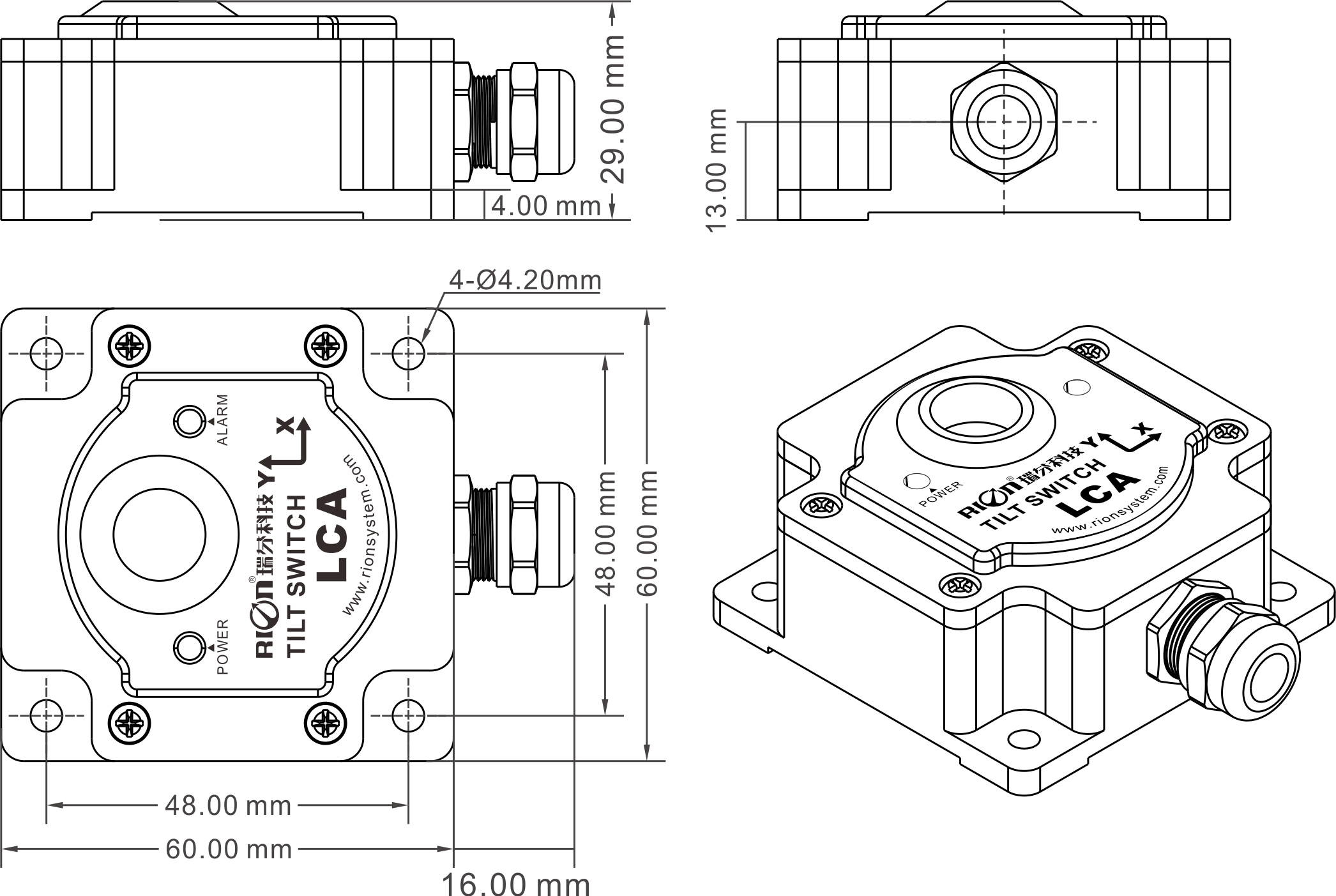

Dimensions
Download
| LCA341 / LCA342 | CONDITIONS | PARAMETER | UNIT |
| Measure range |
| ±15 | ° |
| Measure axis |
| X/X Y | Axis |
| Resolution |
| 0.05 | ° |
| Measure accuracy |
| 0.1 | ° |
| Long-term stability |
| 0.05 | ° |
| Zero temp. coeffiecient | -40～85℃ | ±0.006 | °/℃ |
| Temp. Sensitivity coefficient | -40～85℃ | ≤100 | ppm/℃ |
| Power on time | 0.1 | S | |
| Response time | 0.2 | s | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | ||
| MTBF | ≥50000hours/times | ||
| Insulation Resistance | ≥100MΩ | ||
| Impact resistance | 100g@11ms、3 axial direction (half sinusoid) | ||
| Anti-shock | 10grms、10～1000Hz | ||
| Protection grade | Direct lead IP67; Aviation plug IP65 | ||
| Cables | 1m, durable, grease proof, wide temperature, shield cable, 4*0.4 mm2 | ||
| Weight | 140g(without cable) | ||
L76×W60×H36mm
L48×W48×H6mm
4 M4 screws
