Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
Dynamic accuracy: ± 0.1 °
Resolution 0.01 °
DC 9~36V wide voltage input
Wide temperature operation -40~+ 85 ℃
High anti-vibration performance> 2000g
IP67 protection level
Product Description
Scope of application
Parameter
Dimensions
Download

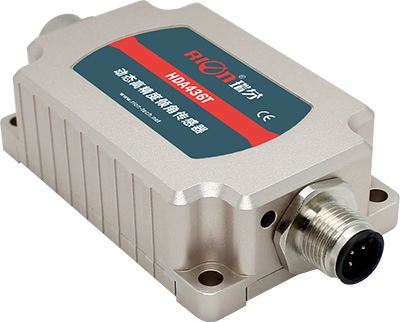

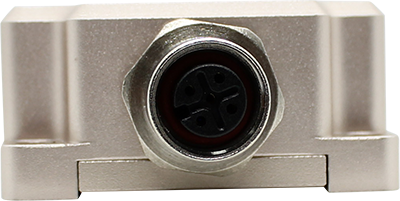

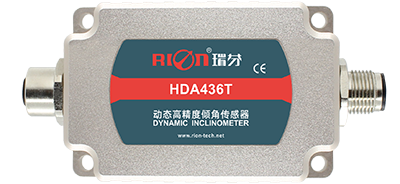

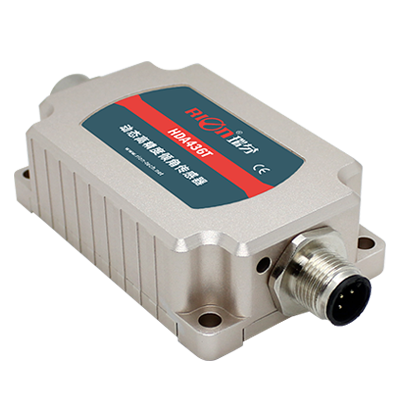

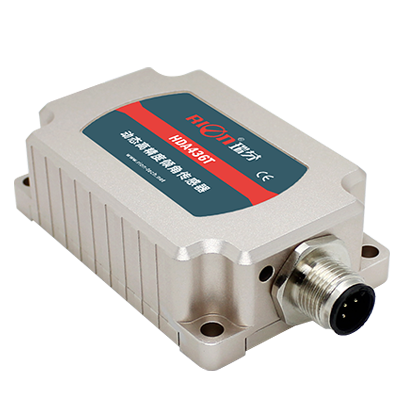

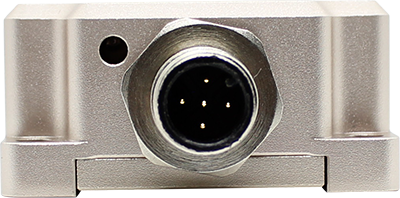

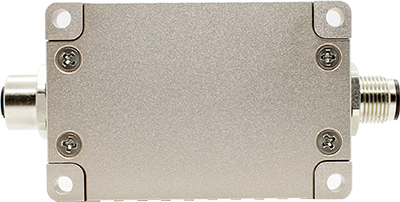

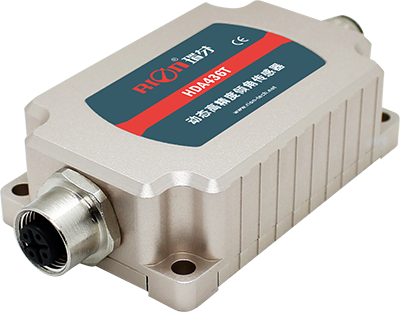

HDA436T A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The product has dual CAN (CAN2.0A / CAN2.0B) mode, which is highly scalable.This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces.Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements Work in places and harsh environments.The product is a dynamic and static dual-mode measurement sensor with strong resistance to external electromagnetic interference. It is an ideal choice for industrial automation control and military-civilian dual-use measurement posture.
| HDA436T | CONDITION | INDEX |
| Measure range |
| Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °) |
| Measure axis |
| X axis / Y axis / Z axis |
| Resolution |
| 0.01° |
| Static accuracy (RMS) | @25℃ | ± 0.05° |
| Dynamic accuracy (RMS) | @25℃ | ± 0.1° |
| Bias Instability (Allan) |
| 8°/h |
| Zero point temp. coefficient | -40～85℃ | ±0.01°/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100ppm/℃ |
| Power-on startup time | 1S | |
| Response time | 0.01S | |
| Output signal | CAN2.0A/CAN2.0B | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥ 50000 hours / time | |
| Insulation resistance | ≥100 Megohm | |
| Impact resistance | 100g @ 11ms, 3 axial direction (half sinusoid) | |
| Anti-vibration | 10grms、10～1000Hz | |
| Waterproof level | IP67 | |
| Cable | Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable | |
| Weight | Single connector≤165g / double connector≤180g (Without cable) | |
| PARAMETER | CONDITION | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|
| Supply voltage | standard | 9 | 12、24 | 36 | V |
| Working current | without load |
| 60mA(12V) |
| mA |
| Operating temp |
| -40 |
| +85 | ℃ |
| storage temp |
| -40 |
| +85 | ℃ |

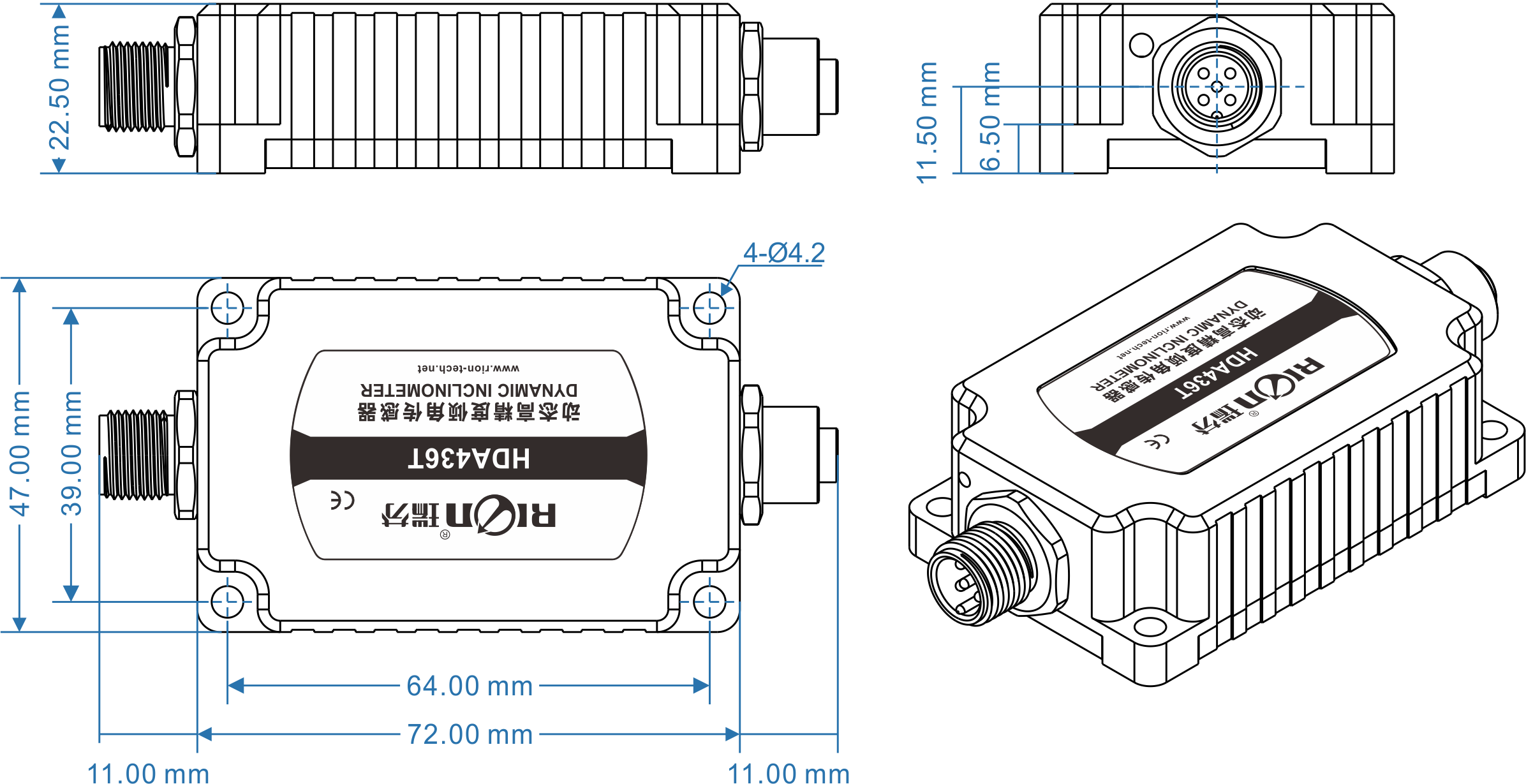

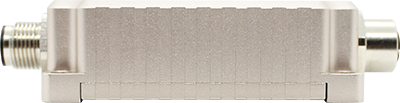

L94×W47×H22.5mm
L64×W39×H6.5mm
4 M4 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
