Azimuth accuracy: 0.5 °
Rolling angle measurement range: ± 180 °
Tilt accuracy: <0.1 °
Standard RS232 / RS485 / TTL output interface
Wide temperature range: -40 ℃ ～ + 85 ℃
With hard magnetic, soft magnetic and tilt compensation
Product Description
Scope of application
Parameter
Dimensions

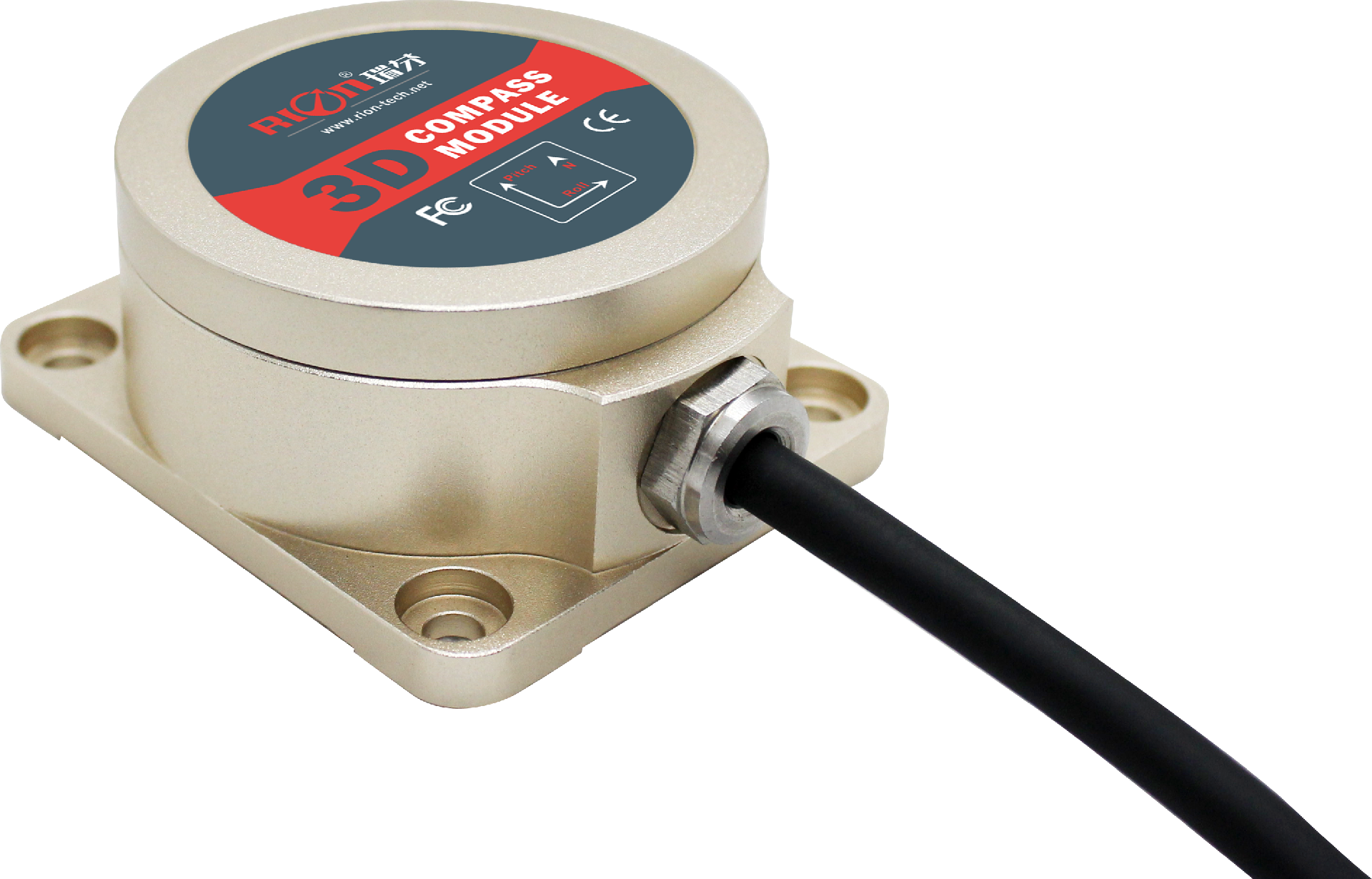

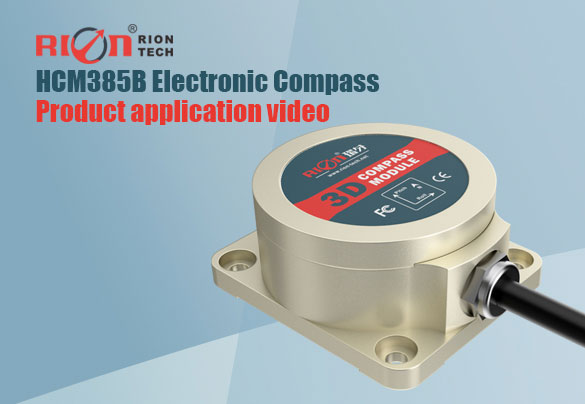

DownloadHCM385B is a high-precision 3D compass sensor, and the protection reaches IP67 level. Using advanced hard and soft iron calibration algorithms, make any tool surface with a roll angle of 360 ° can still provide high-precision heading information. With the characteristics of small size and low power consumption, it is more suitable for today's miniaturized sensitive measurement systems. The product can be ordered with a complete sealed casing or a circuit board.HCM385B integrates three-axis magnetic flux gate technology. It uses a central processing unit to calculate heading data in real time, and uses a three-axis accelerometer to compensate for a wide range of tilt angles. It is a high-performance, high-stability military-grade product. HCM380B / HCM385B has been widely used in many fields such as stable antennas, vehicles, and system integration.
Engineering vehicle leveling
| HCM385B Parameters | ||
| Compass heading | Best heading accuracy | 0.5° tilt <10° |
| 2.0° tilt＜60° | ||
| 3.0° tilt＜80° | ||
| Resolution | 0.1° | |
| Compass tilt angle | Pitch accuracy | 0.1°<15°（Measure range） |
| 0.1°<30°（Measure range） | ||
| 0.1°<60°（Measure range） | ||
| 0.2°<90°（Measure range） | ||
| Pitch measure range | ±85° | |
| Roll accuracy | 0.1°<15°（Measure range） | |
| 0.1°<30°（Measure range） | ||
| 0.1°<60°（Measure range） | ||
| 0.2°<180°（Measure range） | ||
| Roll measure range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Soft Magnetic field interference calibrationmethod | Horizontal rotation 360 °; vertical rotation (optional) | |
| physical characteristics | Dimension | L57×W49×H25.5mm |
| Weight | ≤130g(without cable) | |
| RS232/RS485/TTL interface | Direct leading cable | |
| Interface characteristics | Start delay | <50ms |
| Max output | 20Hz/s | |
| Communication rate | 2400 ~115200baud | |
| Output format | Binary high performance protocol | |
| Power supply | Power voltage | （default）DC+5V |
| Current (max) | 30mA | |
| Idea mode | 26mA | |
| Sleep mode | TBD | |
| Environment | Working temperature | -40℃～+85℃ |
| Storage temperature | -40℃～+85℃ | |
| Anti vibration performance | 100g | |
|
| Protective performance | IP67 |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/time | |
| Insulation resistance | ≥100 Mega ohm | |
| Impact resistance | 100g@11ms、3 Axial Direction (Half Sinusoid) | |
| Anti vibration | 10grms、10～1000Hz | |

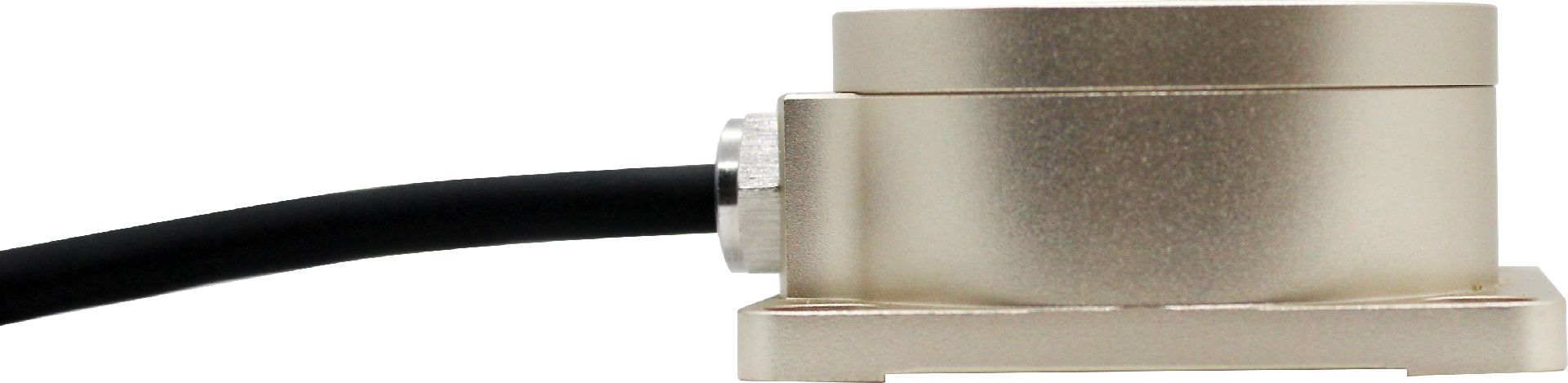

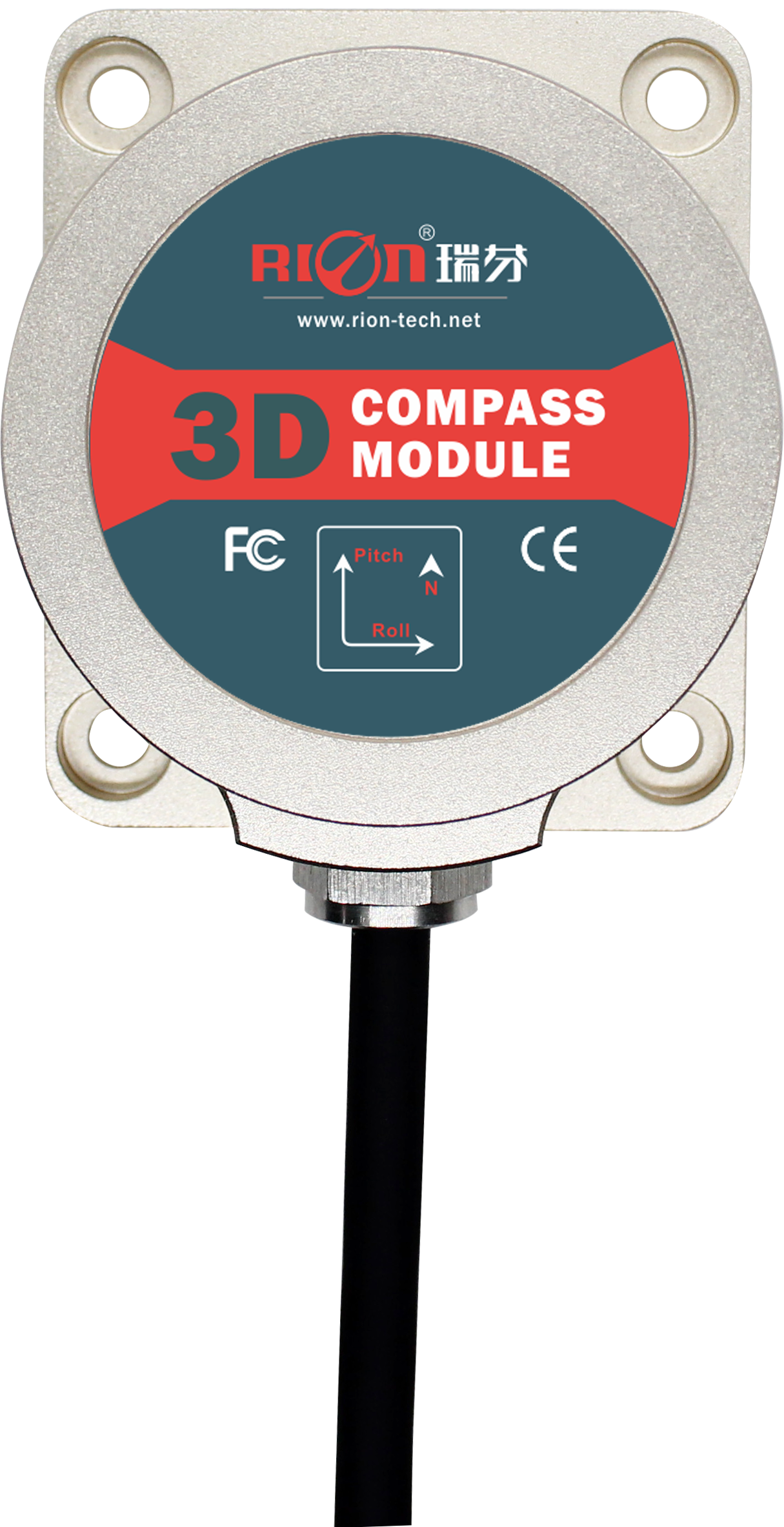

L57×W49×H25.5mm
L45×39×5mm
4 M4 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
File Location: Download Specifications /HCM SERIES/RION HCM385B-MP
