Measuring range 0-25MPa
304 stainless steel shell integrated by laser welding , strong corrosion resistance
Two current output ways, long transmission distance
IP67
Product Description
Scope of application
Parameter
Dimensions

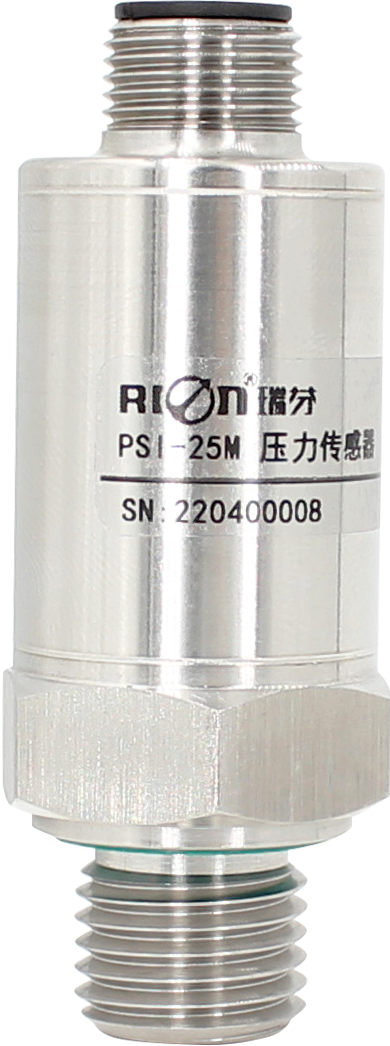

DownloadPSI-25M is used for the pressure measurement of liquid and gas in construction machinery, industrial equipment, shipbuilding industry, and other industries requested for pressure monitor or measurement. Features: measuring range 0-25MPa, 304 stainless steel shell integrated by laser welding , strong corrosion resistance, high pressure measure range, aviation connector, IP67, two current output ways, long transmission distance, high precision, one way output 20mA to 4mA, the other output 4mA to 20mA, dual reverse output, strong anti-interference ability, with temperature compensation algorithm, low temperature drift and higher accuracy, good electromagnetic compatibility and environmental adaptability.It suits for various complex and harsh industrial working condition.
| PSI-25M | parameter |
| Range | 0~250Bar |
| Precision | ±0.5%FS（@25℃） |
| ±1%FS（@-20~60℃） | |
| ±2%FS（@-40~20℃ @60~85℃） | |
| Output 1 | 4~20mA |
| Output2 | 20~4mA |
| Supply voltage | 9~32Vdc |
| Compensated temp. | -20~60℃ |
| Operating temp. | -40~85℃ |
| Size | Ø24.5*H60.5mm |
| Weight | ≤80g(cable not included) |
| PIN1 | DC9~32V V+(shared) |
|---|---|
| PIN2 | Iout(20~4mA) |
| PIN3 | GND(shared) |
| PIN4 | Iout(4~20mA) |
| PIN5 | NC |

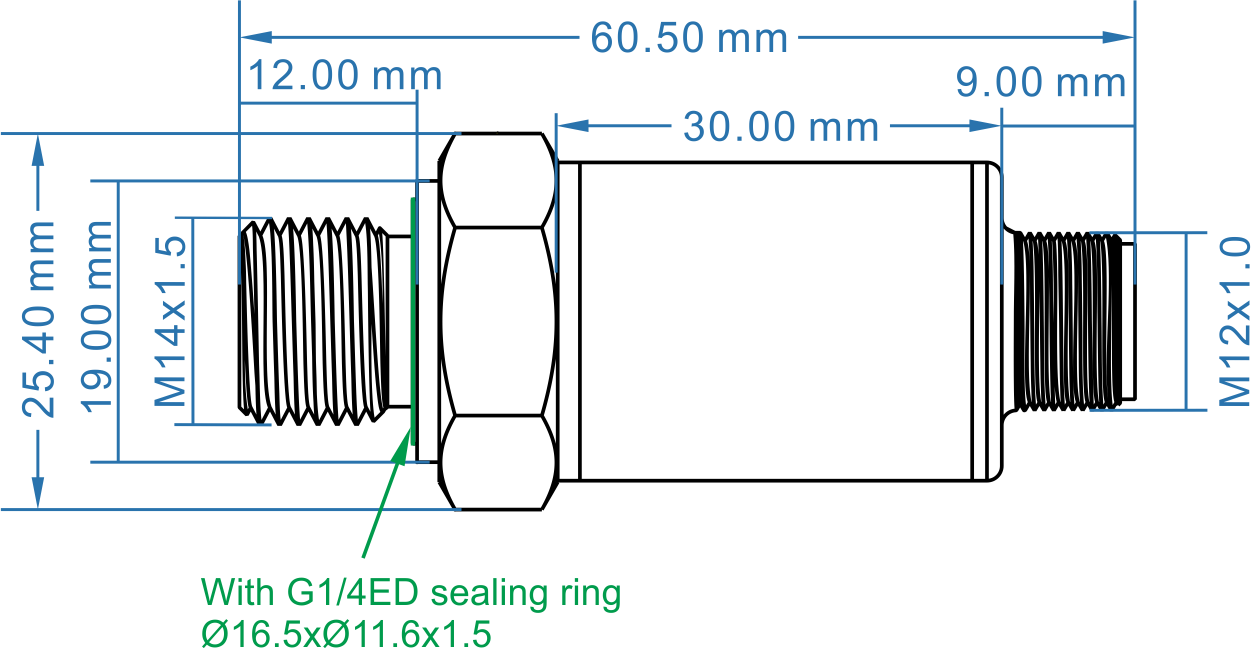

Ø25.4×60.5mm
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
