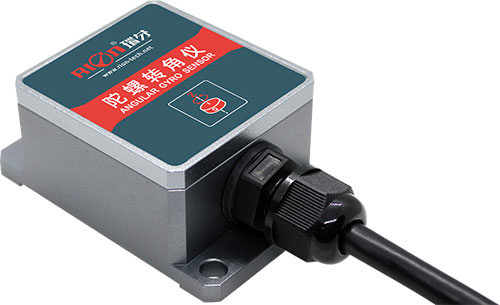

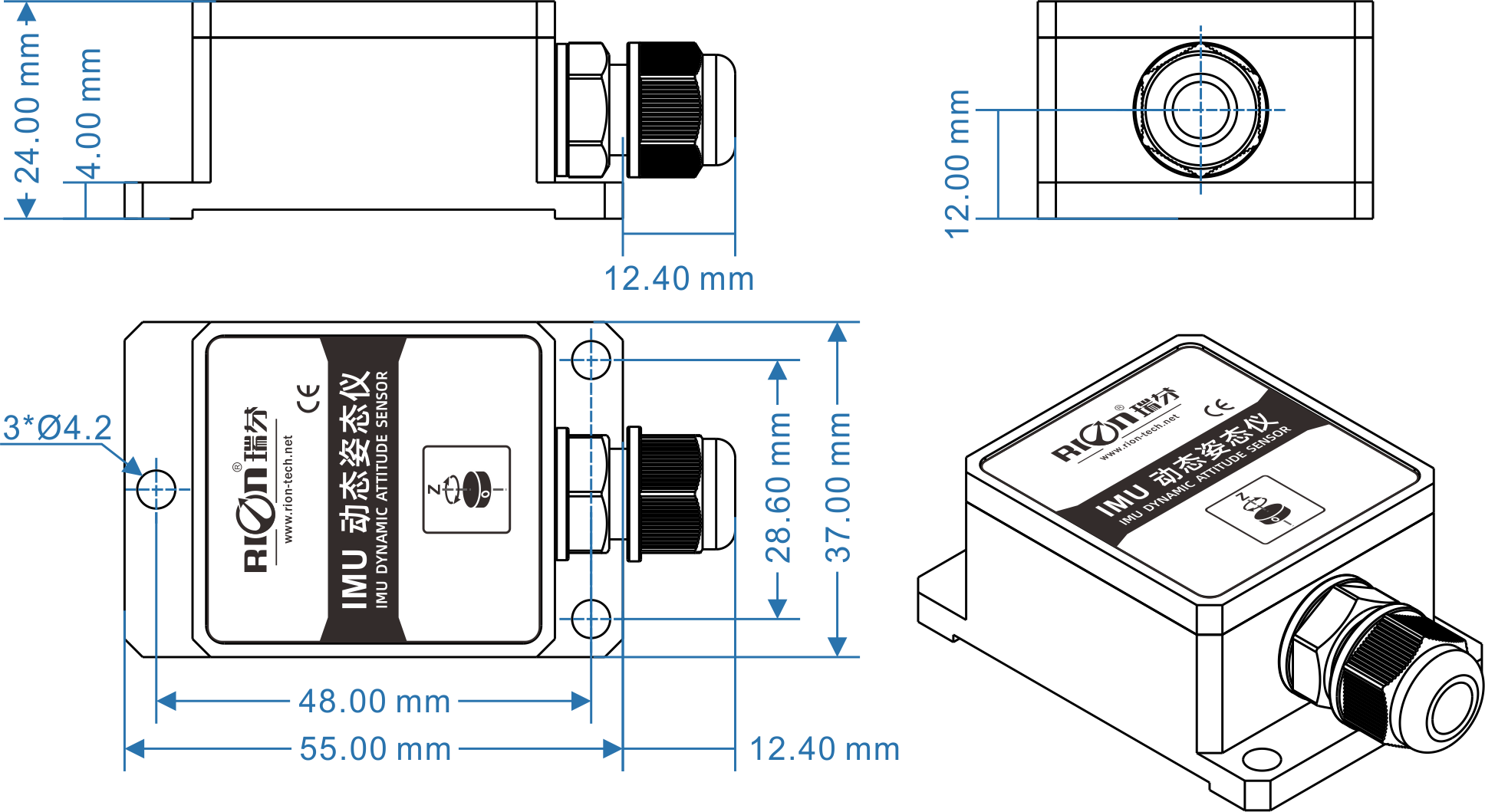

TL720D-C2/C3

PARAMETERS

Heading measure axis

Z axis heading angle（±180）°

Bandwidth

>100Hz

Resolution

0.01°

Heading accuracy

<0.1°/m

Position accuracy

<2mm/m (According to the angle conversion)

Nonlinear

0.1% of FS

Pitch measurement range

±90°

Pitch measurement accuracy

0.25°（1σ）

Roll measurement range

±180°

Roll measurement accuracy

0.25°（1σ）

Accelerometer

Accelerometer range

±4g

Acceleration resolution

0.001g

Acceleration accuracy

5mg

Bias instability  (allan)

0.05mg

Speed random walk coefficient  (allan)

0.015m/s/sqrt(h)

Bias stability  (10s average)

0.15mg

Gyro

Max Gyro Range

±250°/s

Bias instability (allan)

5.0°/h

Angle random walk coefficient  (allan)

0.30°/sqrt(h)

Bias stability(10s average value)

10°/h

Startup time

200mS

Input voltage

9~36VDC / 5VDC(optional)

Working current

30mA(12V)

Working temp

-40℃ ~ +80℃

Storage temp

-40℃ ~ +85℃

Vibration

5g~10g

Impact

200g pk，2ms，½sine

Working life

10 years

Outputrate

1Hz~100Hz can set

Output signal

CAN2.0A / CAN2.0B(optional)

MTBF

≥50000Hours/times

Insulation resistance

≥100 MΩ

Shockproof

100g@11ms、3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms、10～1000Hz

Protection grade

IP67

Weight

≤135g (including 1 meter standard cable)
