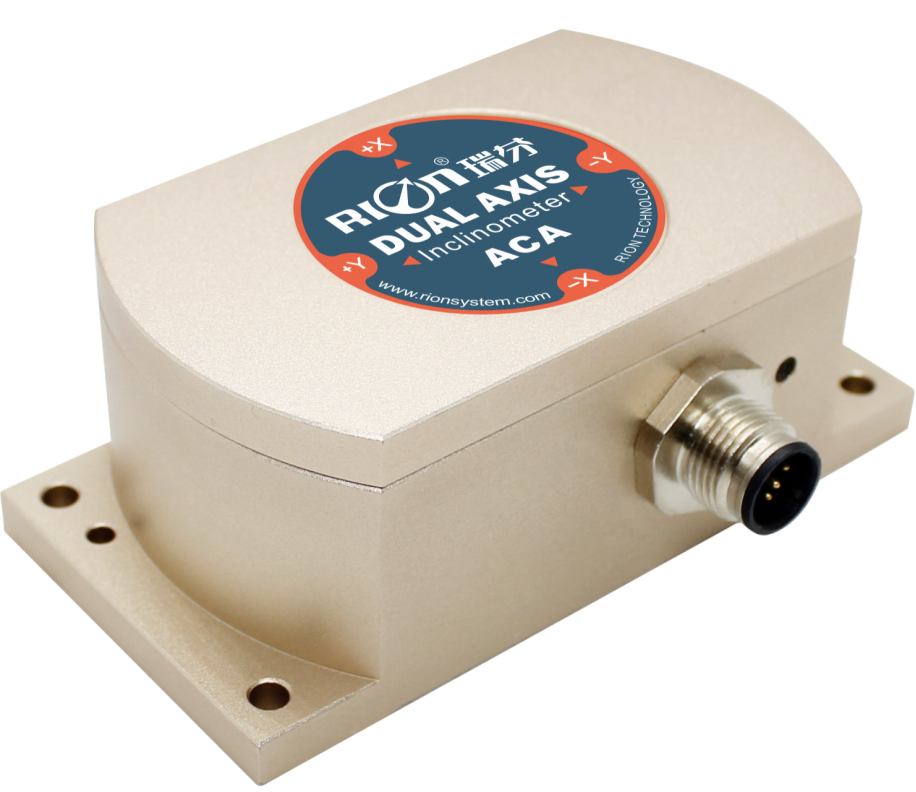

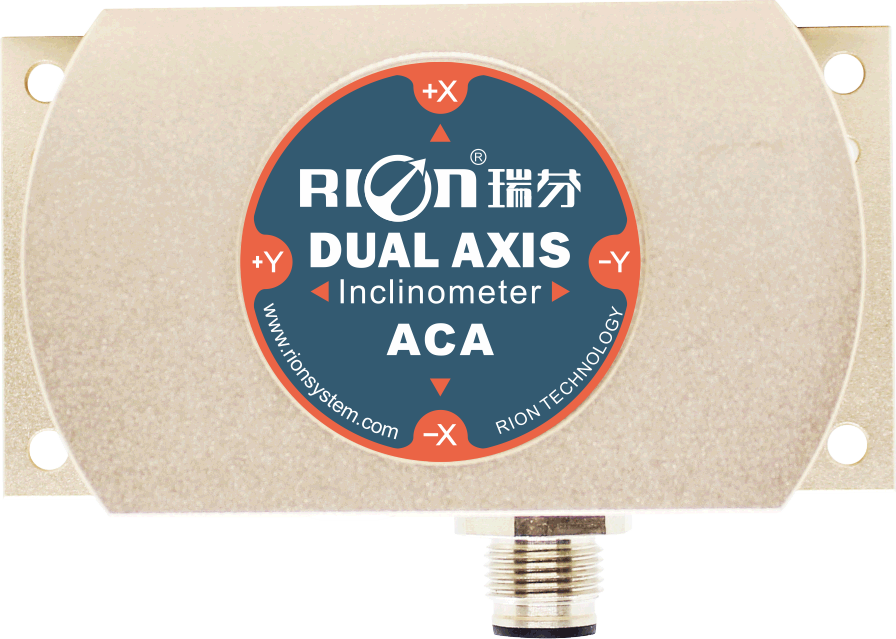

ACA616T

CONDITIONS

PARAMETERS

UNIT

Measure range

±10

±30

±60

±90

°

Measure axis

X/XY

X/XY

X/XY

X/XY

AXIS

Resolution

0.001

0.001

0.001

0.001

°

Measure accuracy

0.003

0.01

0.02

0.03

°

Long term stability

0.01

0.02

0.03

0.04

°

Zero Temp.coefficient

-40~+85℃

±0.0004

±0.0004

±0.0004

±0.0004

°/℃

Sensitivity temp-coeffi

-40~+85℃

≤50

≤50

≤50

≤100

ppm/℃

Power on time

0.5

0.5

0.5

0.5

S

Response frequency

20

20

20

20

Hz

Output rate

5Hz、15Hz、35Hz、50Hz can be setting

output signal

RS232/RS485/RS422/TTL

Communication protocol

RION 68 protocol / MODBUS protocol

EMC

According to EN61000 and GBT17626

MTBF

≥50000 hours/times

Insulation Resistance

≥100MΩ

Shockproof

100g@11ms、3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms、10～1000Hz

Protection grade

IP67

Cables

Standard 2m long, wear-resistant, wide temperature, shielded cable 5p * 5.7 mm aviation connector

Weight

220g(without cable)
