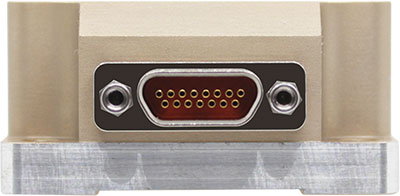

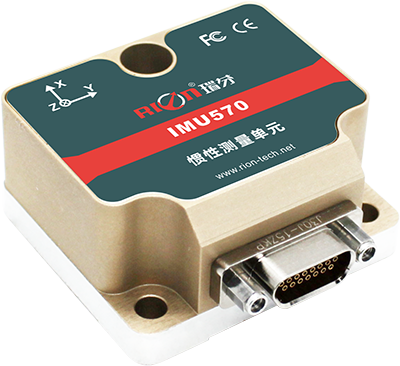

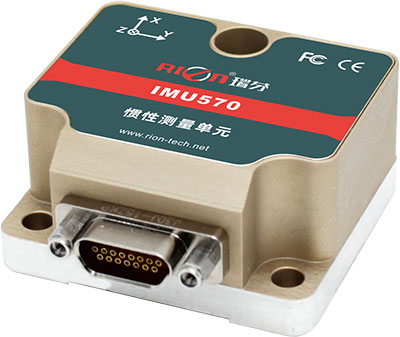

Product Description

IMU570 inertial navigation unit is composed of three-axis gyroscope, three-axis acceleration, temperature sensor and signal processing circuit. The three-axis angular rate of the carrier is measured, and the three angular rate data after error compensation (including temperature compensation, installation misalignment compensation, non-linear compensation, etc.) are output through RS422 / RS485 serial port according to the agreed communication protocol. The product adopts differential gyroscope structure, effectively restrains the influence of linear acceleration and vibration, and adopts full temperature compensation to suit the harsh environment of industrial application.

Scope of application

Autopilot

drone

AGV

Pass-in-motion attitude unit

Surveying and Mapping POS System

Ship and Offshore Engineering

Oceanographic and underwater mapping

flight control

High-speed train measurement and control system

PARAMETERS

IMU570		PARAMETERS
Attitude angle	Roll / Tilt 1σ (Dynamic)	0.5°
Attitude angle	Heading	0.5°
Gyro	Measuring range	1800°/s
	Zero bias instability (@Allan variance)	≤8°/h（-20~70℃）
	angle random walk (@Allan variance)	≤0.13°/√h &0.24°/√h
	Zero Bias Acceleration Sensitivity	≤1°/h/g
	Resolution	≤0.001°/s
	Scale factor nonlinearity	≤100ppm
	Scale factor repeatability	≤100ppm
	Cross-coupling	≤0.1%
	Bandwidth	≥200Hz
Accelerometer	Measuring range	±38g
	Zero bias instability (@Allan variance)	0.019mg
	Zero bias repeatability	0.08mg
	Speed random walk (@Allan variance)	0.04m/s/√h
	Zero Bias Error in Full Temperature Range	0.5mg
Other parameters	Power supply voltage	（+5±0.5）V（DC）
	Power supply Current	Working current＜0.3A
	Working temperature	-40~85℃
	Storage temperature	-40~85℃
	Vibration	10~2000Hz，10g
	Impact	100g@11ms、3 Axial Direction (Half Sinusoid)
Weight		≤60g (excluding cables)

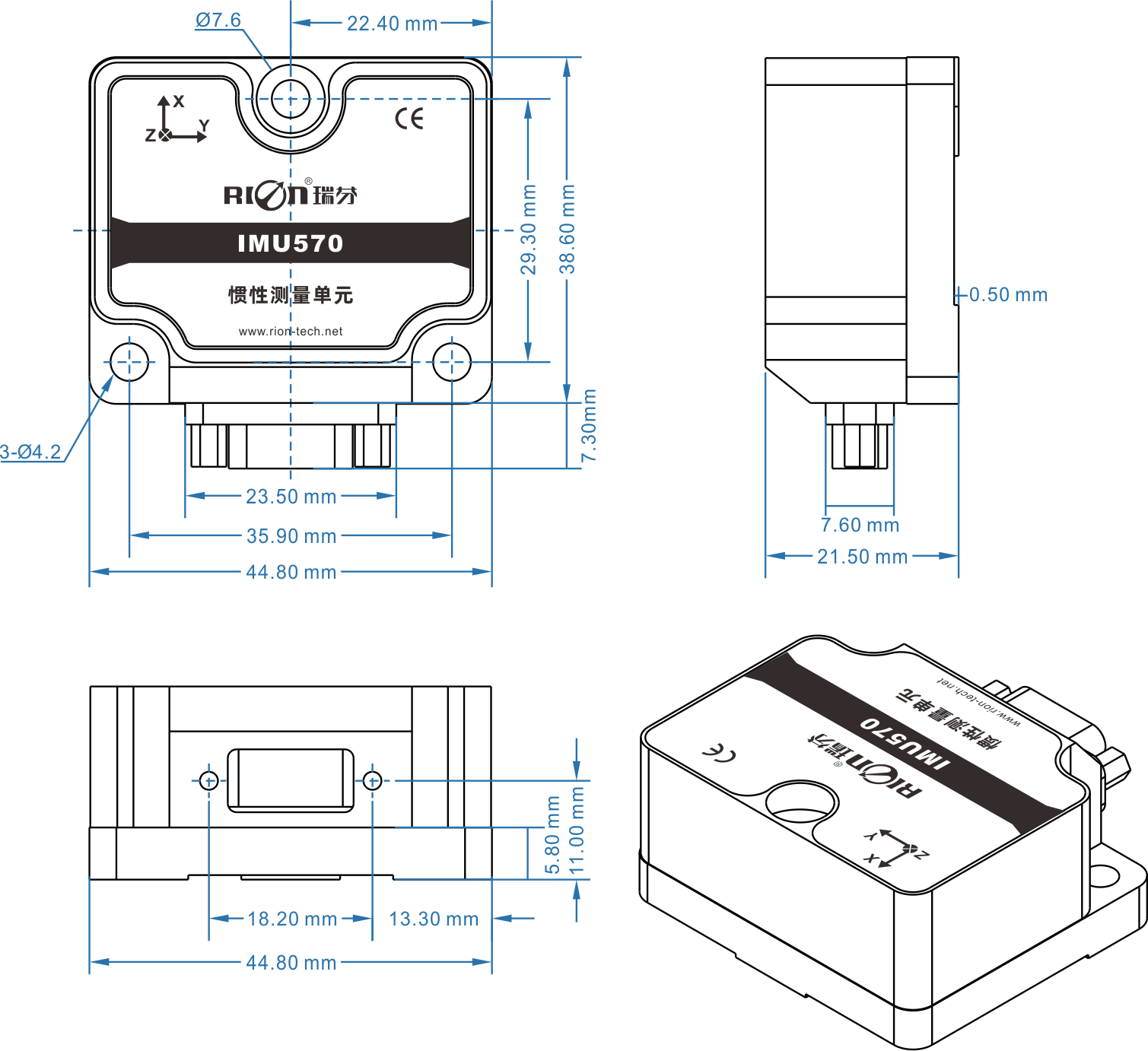

Dimensions

Size description

Shell size

L44.8×W38.6×H21.5mm
Installation size

L35.9×W29.3×H5.8mm
Mounting screws

3 M4 screws

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.

Software Download

INERTIAL NAVIGATION SYSTEM HOST COMPUTER SOFTWARE V1.5

File Location: Download Specifications /INERTIAL NAVIGATION SYSTEM/RION IMU570

Update Time: 2022-01-12 15:19

File Size: 4.5MB
