Azimuth accuracy: 0.5 °
Rolling angle measurement range: ± 180 °
Tilt accuracy: <0.1 °
Standard RS232 / RS485 / TTL output interface
Wide temperature range: -40 ℃ ～ + 85 ℃
With hard magnetic, soft magnetic and tilt compensation
Product Description
Scope of application
Parameter
Dimensions
Download

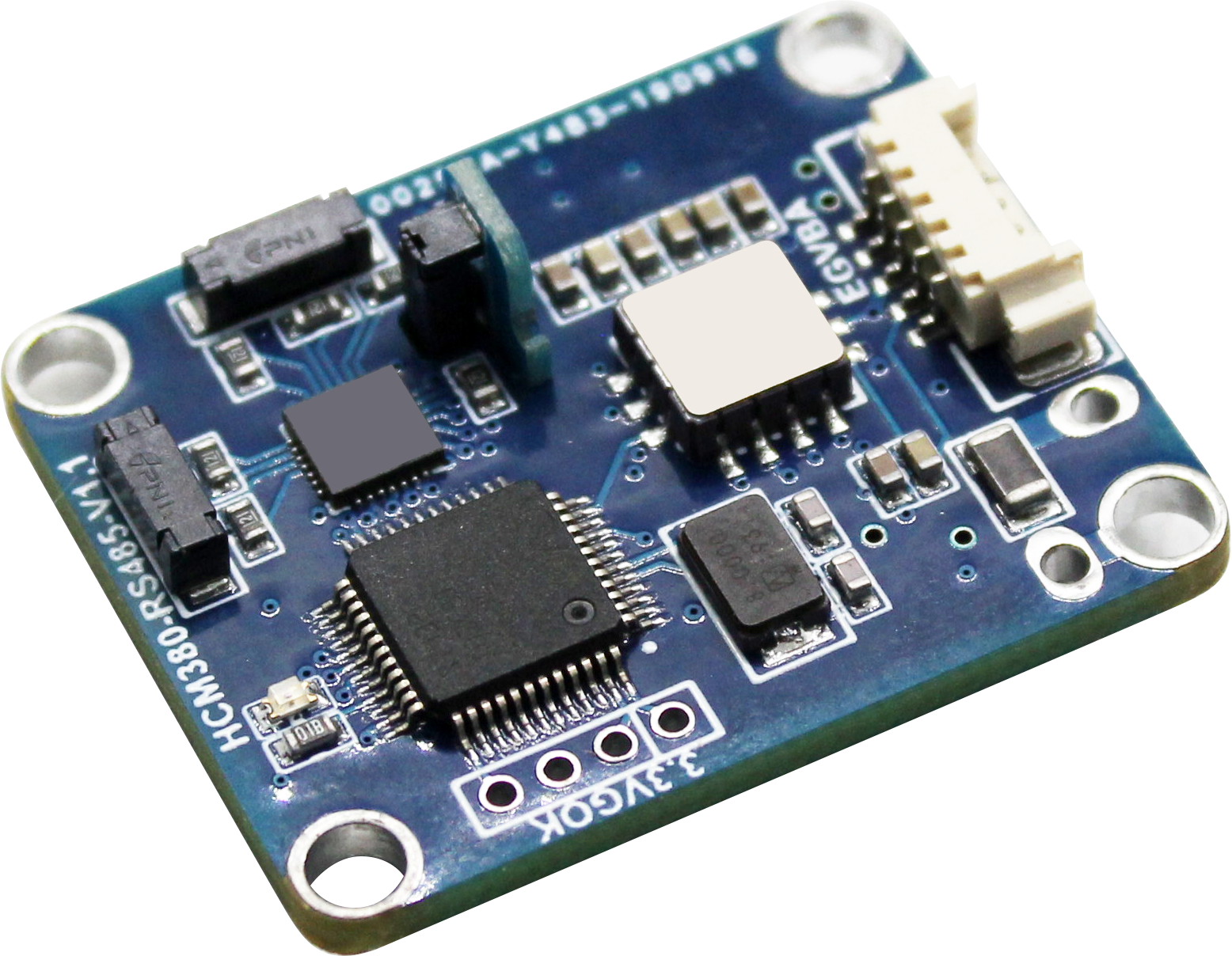

HCM380B/HCM385B-MP is a cost-effective 3D electronic compass. It adopts 24-point calibration method, which has stronger anti-interference and easy operation, and uses high-precision accelerometer for tilt compensation, so that it can provide high-precision heading information at any tool surface at roll within ±180 °For fixed interference, it can still provide high-precision measurement data, RS232, RS485, TTL multiple communication interface methods are optional.

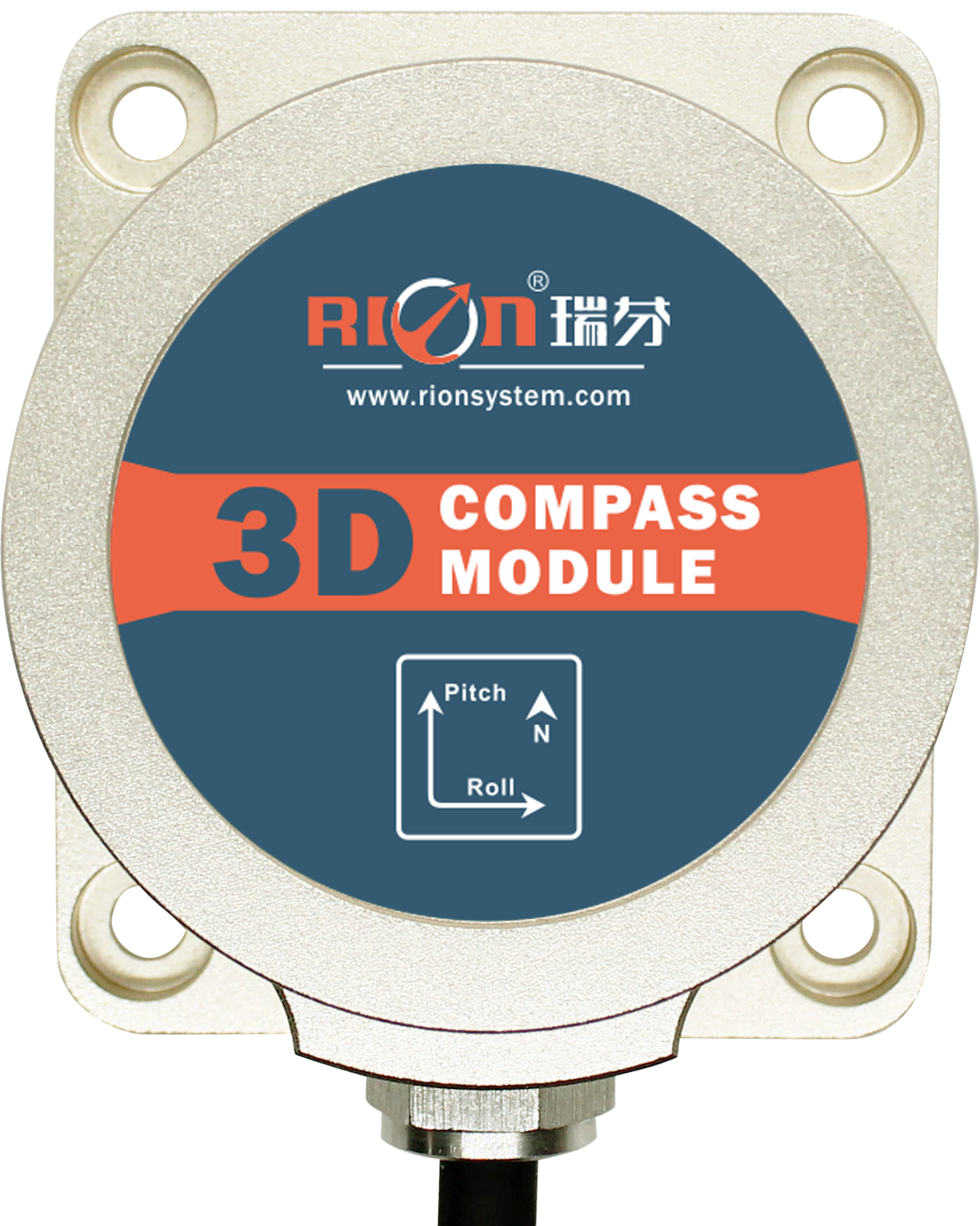

The product integrates a three-axis magnetometer and a three-axis accelerometer, with high resolution and strong anti-noise capability. It is a high-performance, high-stability product with small size and low power consumption; It is widely used in many fields such as handheld devices, mobile devices, antenna stabilization, vehicles, and system integration. The product can be ordered with a sealed package or a circuit board.
Engineering vehicle leveling
| HCM380B | ||
| Compass heading | Best heading accuracy | 0.5° tilt <10° |
| 2.0° tilt＜60° | ||
| 3.0° tilt＜80° | ||
| Resolution | 0.1° | |
| Compass tilt angle | Pitch accuracy | 0.1°<15°（Measure range） |
| 0.1°<30°（Measure range） | ||
| 0.1°<60°（Measure range） | ||
| 0.2°<90°（Measure range） | ||
| Pitch measure range | ±85° | |
| Roll accuracy | 0.1°<15°（Measure range） | |
| 0.1°<30°（Measure range） | ||
| 0.1°<60°（Measure range） | ||
| 0.2°<180°（Measure range） | ||
| Roll measure range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Soft Magnetic field interference calibrationmethod | Horizontal rotation 360 °; vertical rotation (optional) | |
| physical characteristics | Size | L33×W27×H9.5mm |
| Weight | ≤10g(without cable) | |
| RS232/RS485/TTL interface | Direct leading cable | |
| Interface characteristics | Start delay | <50ms |
| Max output | 20Hz/s | |
| Communication rate | 2400 ~115200baud | |
| Output format | Binary high performance protocol | |
| Power supply | Power voltage | （default）DC+5V |
| Current (max) | 30mA | |
| Idea mode | 26mA | |
| Sleep mode | TBD | |
| Environment | Working temperature | -40℃～+85℃ |
| Storage temperature | -40℃～+85℃ | |
| Anti vibration performance | 100g | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/time | |
| Insulation resistance | ≥100 Mega ohm | |
| Impact resistance | 100g@11ms、3 Axial Direction (Half Sinusoid) | |
| Anti vibration | 10grms、10～1000Hz | |

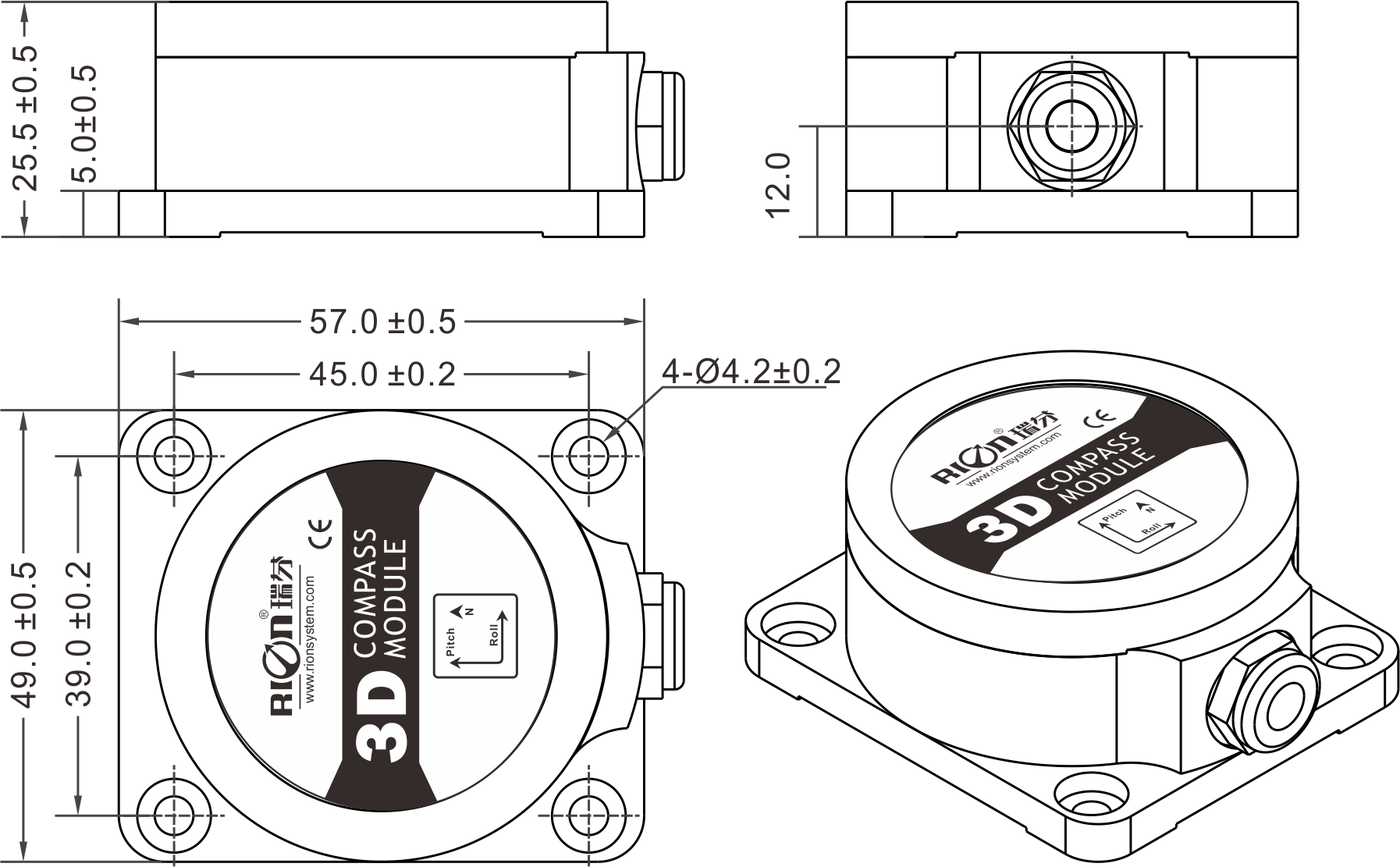

L33×W27×H9.5mm
L28.5×22.6×2mm
4 M3 screws
